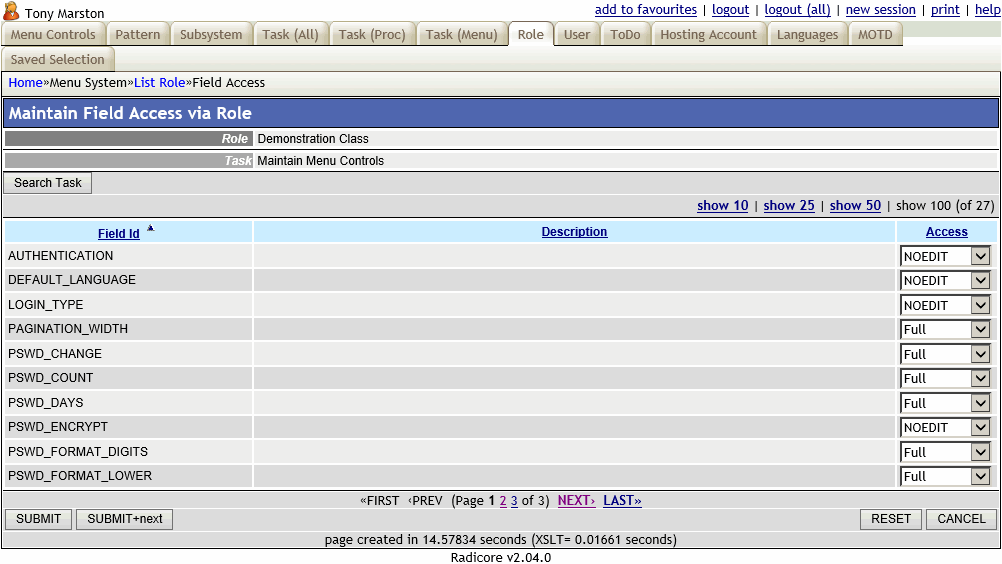

mnu_role_taskfield(multi3)b - Maintain Field Access via Role

mnu_role_taskfield(multi3)b (23K)

The purpose of this form is to allow the user to maintain the contents of the ROLE-TASK-FIELD table for a selected ROLE. This will change the default access to fields within a Task's screen for Users within a specified Role.

This form is accessed by an option on the navigation bar in the List Role screen.

The body of the screen will show those TASK-FIELD entries which exist for the current Task. Any changes will be put into effect by pressing the SUBMIT button.

For a complete description of how this type of form works please see Transaction Pattern MULTI 3.

Field List
Field NameTypeDescription
Role ID String Required. The identity of an entry on the ROLE table.
Task ID String Required. The identity of an entry on the TASK table.
Field ID String Required. The identity of an entry on the TASK-FIELD table for the current Task.
Access String Required. To be selected from a dropdown list. Possible options are:
  • FULL - Users of this Role have read and write access to this field within this Task. This is the default setting.
  • NOEDIT - Users of this Role can view this field but cannot change it.
  • NODISPLAY - User of this Role cannot view or change this field, so it will not appear in the screen.



ButtonAction
  Entries can be modified by changing values in the screen and pressing the SUBMIT button.
  Entries can only be added by activating Add Task Field
  Entries can only be deleted by activating Delete Task Field
